Single Tube End Chamfering Machine


Single Tube End Chamfering Machine

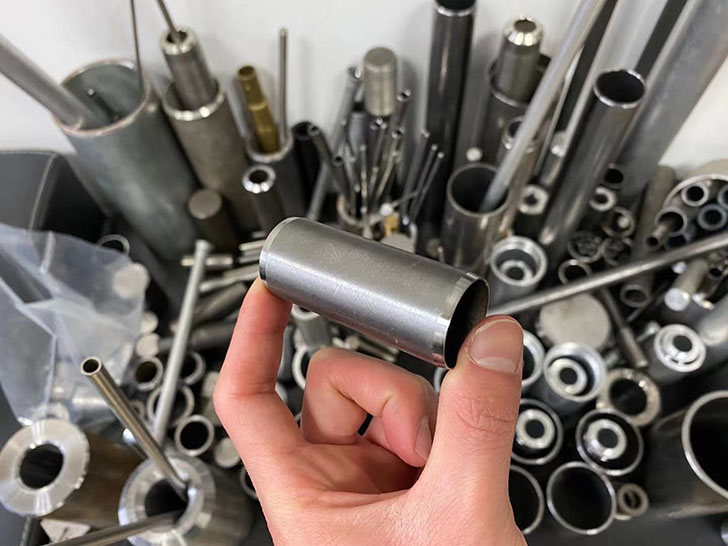

Single Tube End Chamfering Machine Samples

CJ-50 Pneumatic Chamfering Machine

Experience the efficiency and precision of the CJ-50 chamfering machine, accommodating tube ends with an outer diameter (OD) of up to 50mm. This advanced chamfering solution is perfect for single tube end chamfering and is also compatible with solid bars.


Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

request a quote

Parameters:

Model

CJ-50

Type

Pneumatic Drive

Pipe Diameter

5-50mm

Bar Diameter

3-15mm

Work Length

≥30mm

Work accuracy

±0.1mm

Work Speed

3-5s/pcs

Machine Motor

1.0kw

Work Pressure

MPA 6-8KG

Weight

200KG

Dimension

800*600*110cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc


Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
