Metal Plate Edge Beveling Machine


Metal Plate Edge Beveling Machine
Metal Plate Edge Beveling Machine

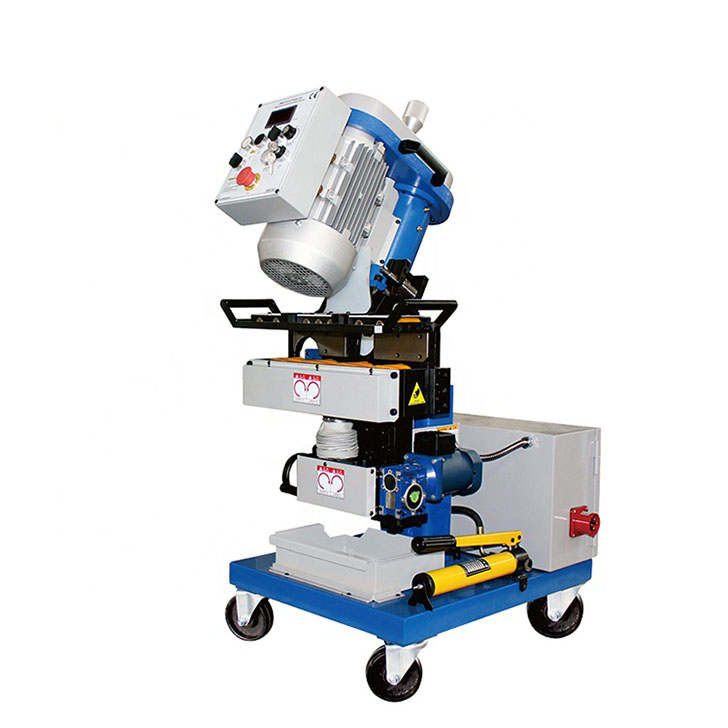

CJ-60S Beveling Machine

Our CJ series 60S plate edge milling machine, designed for precision metal edge beveling in weld preparation. This versatile machine offers a working range of clamp thickness from 6mm to 60mm, and it allows adjustable bevel angles ranging from 10 to 60 degrees. The GMMA series is renowned for its high precision, capable of achieving surface finishes as fine as Ra 3.2-6.3. Experience excellence in metal edge beveling with our advanced equipment.

request a quote
ModelsCJ-60SCJ-60LCJ-80ACJ-80RCJ-100LCJ-100KCJ-R3TDCJ-R3AR
Power SuppyAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZ
Total Power4520W4520W4920W4920W6520W6480W1900W& 0.5-0.8 Mpa1900+400W
Spindle Speed1050r/min1050r/min500~1050r/min500-1050mm/min500-1050mm/min500~1050r/min2800r/min2800r/min
Feed Speed0~1500mm/min0~1500mm/min0~1500mm/min0~1500mm/min0~1500mm/min0~1500mm/min0~4000mm/min0~4000mm/min
Clamp Thickness6~60mm6~60mm6~80mm6~80mm6~100mm6~100mm8~60mm8~60mm
Clamp Width>80mm>80mm>80mm>80mm>100mm≥100mm≥100mm≥100mm
Clamp Length>300mm>300mm>300mm>300mm>300mm≥400mm≥300mm≥300mm
Bevel Angel0~60 degree0~90 degree0~60 degree0~±60 degree0~90 degreeTop 0~90 ° and Down 0~-45°//
Singel Bevel width0-20mm0-20mm0-20mm0-20mm15-30mm0-20mm3mm3mm
Bevel Width0-45mm0-60mm0-70mm0-70mm0-100mmTop 0~60mm and Down 0~45mmC2/C3/R2/R3R2/R3
Cutter DiameterDia 63mmDia 63mmDia 80mmDia 80mmDia 100mm2 * Dia 63mm2 * Dia 60mm2 * Dia 60mm
Inserts QTY6 pcs6 pcs6 pcs6 pcs7 pcs/9pcs2 *6 pcs2 *3 pcs2 *3 pcs
Worktable Height700-760mm700-760mm700-760mm700-760mm810-870mm810-870m'm800-860mm730-790mm
Suggest Table Height730mm730mm730mm730mm830mm830mm830mm760mm
Worktable Size800*800mm800*800mm800*800mm1200*800mm1200*1200mm800*800mm1200*900mm1000*1000mm
Clamping WayAuto ClampingAuto ClampingAuto ClampingAuto ClampingAuto ClampingAuto ClampingAuto ClampingAuto Clamping
Wheel Size4 Inch STD4 Inch STD4 Inch STD4 Inch Heavy duty4 Inch Heavy duty4 Inch Heavy duty/4 Inch STD
Machine Height AdjustHydraulicHydraulicHydraulicHandwheelHandwheelHandwheelHandwheelHandwheel
Machine N.Weight200 kgs225 kgs245 kgs310 kgs420 kgs395 kgs380kg300kg
Machine G Weight255 kgs260 kgs280 kgs380 kgs480 kgs460 kgs430kg380kg
Wooden Case Size800*690*1140mm950*700*1230mm800*690*1140mm1100*630*1340mm950*1180*1430mm950*1180*1430mm1400*1200*1230mm950*700*1230mm
