7 Roller Tube Bending Machine, China Factory Price
Tube processing machine

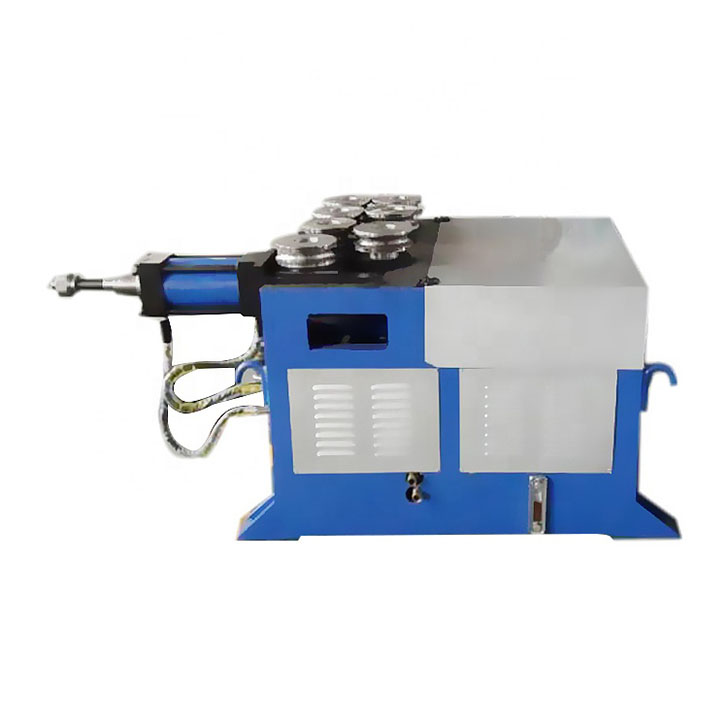

7 Roller Tube Bending Machine

CJ-60NC Pipe Rolling Bender

CJ-60NC 7 rolls pipe rolling machines redefine efficiency in pipe bending, ideal for creating large radius bends and curves.

Key features:
1.Seven-Roller Mechanism: Achieve precise large radius bends.
2. Adjustable Rolling Radius: Easily adaptable for various project needs.
3. Hydraulic Control System: Ensures precision, ease-of-use, and cost-effectiveness.
4. Dual Radius Flexibility: Capable of two different radii on the same pipe.
5. Perfect for Small to Medium Productions: A semi-automatic solution that combines performance with practicality.

Parameter

Machine Type



NC



Max Diameter



80mm

Max Thickness

 0.5-2mm

Bending Diameter Control

Oil Cylinder

Min Rolling Diameter

 ≥1.5M

Spindle Speed:



5-25r/min

Hydraulic Motor Power:



5.5KW

Hydraulic Oil Pump



23L/min



Control Method



Push Button



Rolling Method

7 wheel linkage



Oil Pressure Output





4.5Mpa

Working Speed



100mm in 3-5/s



Machine Size

1600*800*1200mm
